Aluminum Bleacher Parts & Products from Southern Bleacher

Southern Bleacher stadiums are built to last, but when you do need the occasional end cap, attachment clip or sleeve, we've got you covered. Run through the photos below until you find what you need, or just contact us by phone or email - we're always happy to help!

Product Parts

Backrest End Cap

Cast end cap used on anodized aluminum backrest

Backrest Endcap

Channel End Cap

Anodized seat end caps used at aisles and at end of seat plank

Channel Endcap

Floor Flange for Hand Rail

Cast Aluminum used for connecting handrail to aluminum or concrete

Floor Flange for Hand Rail

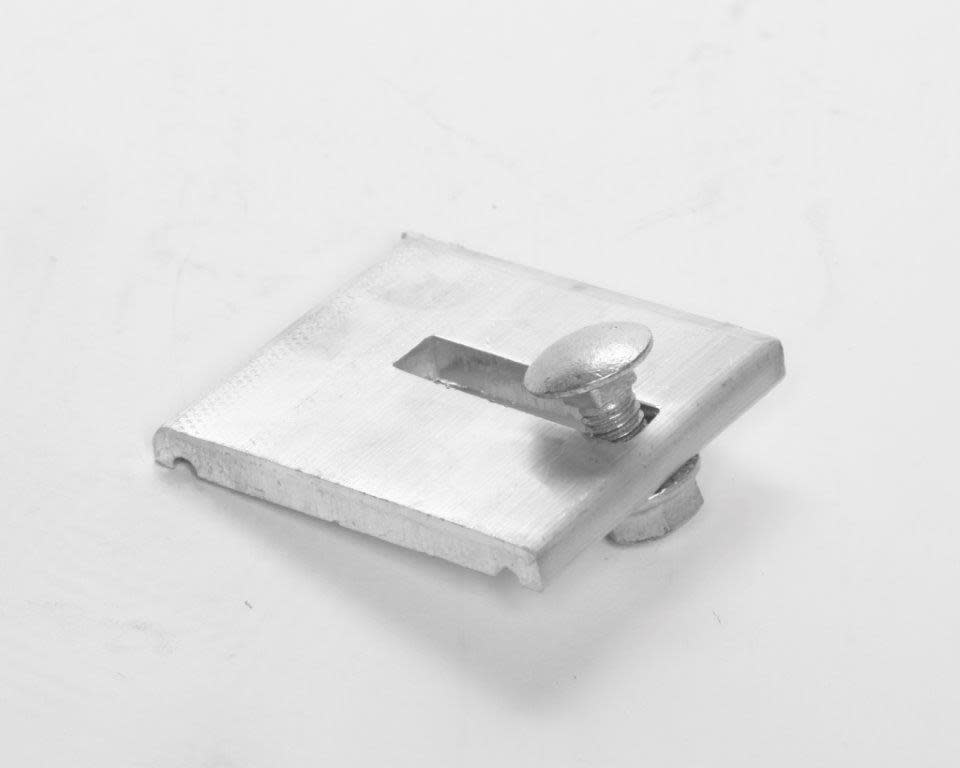

Hold Down Clip Assembly

Mill finish aluminum clip for connecting aluminum to structure

Hold Down Clip assembly

Off Set Handrail Bracket

Aluminum extrusion used for handrail connected to rail riser

Off Set Handrail Bracket

Row Letters

Decal with Black Lettering on Aluminum Field

Row Letters

Plank End Cap

RS Seat end cap used for seat plank

Plank Endcap

Seat Numbers

Decal with Black Lettering on Aluminum Field

Seat Numbers

Standard Sleeve

Mill finish aluminum to connect aluminum plank seats and treads

Standard Sleeve

Anchor Bolt Template

Setting of Anchor Bolts

Anchor Bolt Template

Headed Anchor Bolt

Connection Hardware to Anchor Steel to Concrete Foundations

Headed Anchor Bolt

Double Splice Plate

Making Various Connections to Aluminum Deck

Double Splice Plate

Clevis Nut

Securing Rod Sway Braces

Clevis Nut

Angle End Cap

Trim Hardware for Aluminum Deck

Angle End Cap

1-5/8" O.D. Rail

With Fence, Guard-Rail and Hand-Rail

1-5/8" O.D. Rail

Schedule 40 Pipe

Hand-Rails, Special Fabricated Rail

Schedule 40 Pipe

No. 11E Tee

Guard-Rail, Fencing

No. 11E Tee

No. 9 Side Outlet Ell

Guard-Rail, Fencing

No. 9 Side Outlet Ell

Swivel Elbow

Guard-Rail, Fencing

Swivel Elbow

"U" Clamp

Fastening Hand-Rail to Bleacher Risers

"U" Clamp

Backrest Splice Hold Down Clip (with carriage screw and flange nut)

Securing Splices Along Backrest Plank

Backrest Splice Hold Down Clip (with carriage screw and flange nut)

No. 3EII 90 Degree External Elbow

Guard Rail , Fencing

No. 3EII 90 Degree External Elbow

Internal Handrail Elbow

Internal Continuous Rail

Internal Handrail Elbow

Backrest Clip Assembly

Attach Backrest Aluminum to Structure

Backrest Clip Assembly

No. 43 Single Bolt Floor

Secure Handrails at Terminations onto Concrete

No. 43 Single Bolt Floor

Hillside Washer

Sway-rod Bracing

Hillside Washer

No. 5E Tee

Guard Rail , Fencing

No. 5E Tee

A325 Structural Bolt w/Flat Washer, Lock Washer, and A325 Heavy Hex Nut

Steel Connections

A325 Structural Bolt w/Flat Washer, Lock Washer, and A325 Heavy Hex Nut

Internal Pipe Sleeve

Splicing Rail for Guard Rail Fencing

Internal Pipe Sleeve

Rail Plug w/1-5/8" O.D. Aluminum Rail

End Covers at Pipe Terminations

Rail Plug w/1-5/8" O.D. Aluminum Rail

Interlock Sleeve

Splice Aluminum Planks in Continuous Direction

No. 45 Four Hole Floor Flange

Secure Handrails / Rails at Terminations on Aluminum Decking

No. 45 Four Hole Floor Flange

Wire Tie

Secure Fence to Rail / Pipe

Wire Tie

KL Nut

Secure Seat Brackets, Half Steps, other Components in Interlock or Tongue and Groove Channels

KL Nut

A325 Heavy Hex Nut

Connect Structural Steel and other Components with Bolt

A325 Heavy Hex Nut

Drive Rivet - aka "Pin Grip"

Connect Hardware to Aluminum Deck with use of Hammer

Drive Rivet - aka "Pin Grip"

Flat Washer

Used Primarily with Structural Bolt to Connect Steel

Flat Washer

Self Tapping Screw

Special Connections into Steel Material

Self Tapping Screw

A325 Structural Bolt w/shoulder

Connecting Structural Steel

A325 Structural Bolt w/shoulder

Concrete Wedge Anchor (with flat washer and hex nut)

Securing Steel Components to Concrete Slabs/Piers

Concrete Wedge Anchor (with flat washer and hex nut)

Carriage Bolt with Flat Washer and Hex Nut

Connecting Hardware (Fencing, Guard Railing, etc….)

Carriage Bolt with Flat Washer and Hex Nut

Carriage bolt with hex head flange nut

Connecting Hold Down Clip to Aluminum Decking

Carriage bolt with hex head flange nut

Self Tapping Tek Screw

Securing Hardware to Aluminum or Steel

Self Tapping Tek Screw

Lock Washer

Used with Structural and Non - Structural Hardware

Lock Washer

Pop Rivet

Secure Hardware / Parts to Aluminum

Pop Rivet



Threaded Rod with Flat Washer, Hex Nut, and Epoxy

Holes are Drilled into Concrete for anchors.

Threaded Rod with Flat Washer, Hex Nut, and Epoxy
